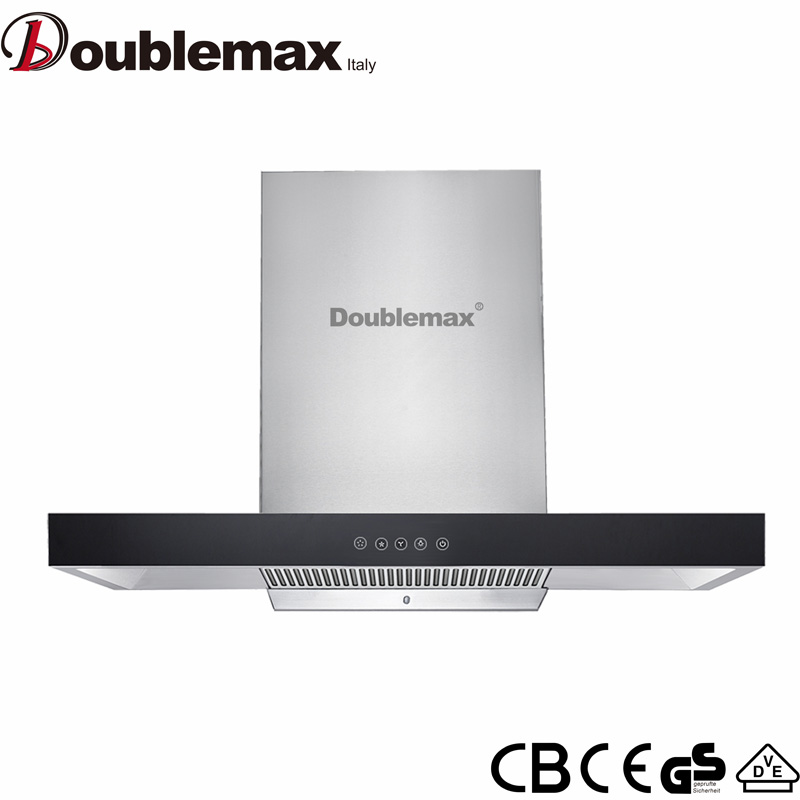

HHT-9002
Product Detail
Basic Info.
Model NO.
HHT-9002
Style
European Style
Certification
CE, CB, SASO, GS
Colour
Silver
Suction Power
1000m/3
Motor
Pure Copper Motor
Warranty
5 Years
Transport Package
Carton
Specification
900mm
Trademark
Doublemax
Origin
China
HS Code
841460
Production Capacity
20000/Year
Range hood features
Product Type | Control | Fan Speed | Grease filter(s) | Lamp Type |
Range hood | Touch | 2 | 2*SS | 2*1.5W LED |
Max noise level (dBA) | Illumination power (W) | Max wind pressure (Pa) | Max extraction rate (m3/h) | Motor rating (W) |
≤57 | 2×1.5 | ≥280 | 1200 | 1200 |
Smoke Sensor | Heat sensor | Remote Control | Bluetooth Control | Ducting Pipe Diameter (mm) |
Optional | Optional | Optional | N/A | 160 |
1. Full sealed Motor at 1000m3/hr airflow High quality SUS body
2. Pure white safety glass 2 x 40cm telescopic chimney ducts
3. 2 speeds sensor touch control
4. stainless steel Filters
5. 2 x 2W LED lamps
6. Product size: 900×460×670mm
7.Big LCD display
8.Body sensor
Range hood Description 1
The motor house design use archimedean spiral and hydrodynamics theory improved the wind pressure and volume with the low noise.
1.Noise reduction rate 13.5% at the same wind volume
2.Flow improvement 21.1% with the same noise
3.Pressure boost 17.8% with the same noise
Range hood Description 2
Central axis of Impellor and motor design guarantees the steady operation
Double inlets motor house design
Organic silicon painted surface, heat -resistant and anti-corrosion
Range hood Description 3
The motor have 2 type:model A is totally-enclosed type,the model B is open type. same to ball bearing, 28-35 copper coils .
Wear-resistance, anti-overheating and over 100000 hours lifespa
-Safety: low temperatue rise less than 30K.
- Large Air delivery:the suction power can be arrival at 1200(m3/h)
- Wide voltage option: Performance keep the same voltage form 160 to 270V and frequeny from 45Hz to 60Hz.
- Environment-friendly: less energy consuption (on 50% o normal motor) and less copper wires used on BLDC motors.
- Low loss high efficiency: motor efficiency at around 70%, saving energy 50% on high speed and 80-90% on low speed.
Range hood Description 4
a1.)2 pcs round Charcoal filters would be recirculated ones.
a2.)The best charcoal fitlers supplier for range hood in China
a3.)The cleaning of the carbon filters should be based on the instruction manual of the rang hood.
Range hood quality control
1)Our products range hood have achieved CE approval
2)Every product range hood will be tested in the factory line before packed
3)Sample of gas range hood can be offered for you inspection
4)Carton packaging, built-in batten, ensure products in good transportation to your port
Range hood certificate
Range hood have CE certificate,SASO,COC,CCC,CB,can be optional.
