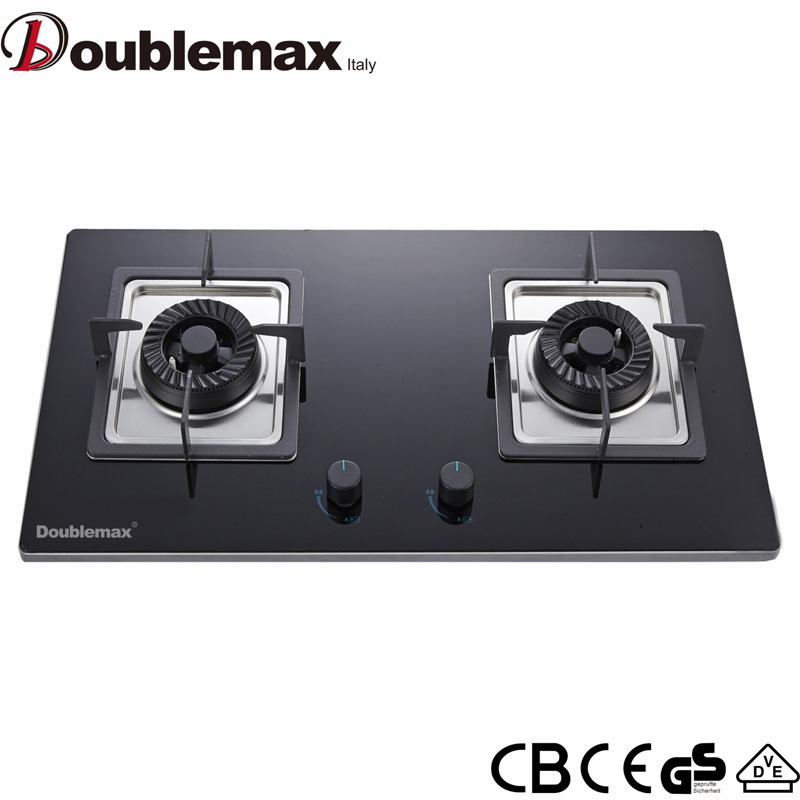

HSG-72221

Product Detail

Basic Info.

Model NO.
HSG-72221
Used for
Household
Heat Load
2X4.5kw
Security
Gas Self-off
Warranty Period
1year
Energy Efficiency
First Grade
Thermal Efficiency
63%
Product Channel
Factory Supply Directly
Burner Cap Material
Copper and Manganese
Usage
Built-in or Table Type
Transport Package
Carton
Specification
900mm
Trademark
Doublemax
Origin
China
HS Code
7321
Production Capacity
20000/Year

Product Description

CE/CB/Saso/GS Certified Factory Supply Directly First Grade 63% Thermal Efficiency Gas Cooker Stove

Gas stove general features

1.panel:8mm tempered glass
2.iron pan supporter
3.SABAF burner,heat power3.2 &2.65 &1.75 &1.0.
4.caps:dull polish
5.button:mental round button
6.back shell:cold spray
7.valve:regulator
8. Safety device can be optional
9.ignition:Auto battery ignition/electric ignition

10.High efficience,save time,save gas,save money

11.Special adjust board with fixed gear,burning more steadily



Gas stove Dismension
Body Size600*520*125mm
Packing Size630*550*165mm
Cave Size550*470*R25
Burner SizeBig:100mm middle:95mm Small:65mm







Gas stove description



Aluminum-alloyed burners sabaf burner for all of doublemax gas cooker.

The main flame from the double rings high power five spouts air injection system will convert from the outer ring to the center, it will enhance the main flame to focus more precisely on the key positions of cooking by improving the heat efficiency and ensure balanced heat energy and save more energy.

CE/CB/Saso/GS Certified Factory Supply Directly First Grade 63% Thermal Efficiency Gas Cooker Stove

.



Gas stove description



1)Automatic fire valve with the CE certificate.

2)The valve with the Micro-Switch more safety.

3)Copper and aluminum valve.

CE/CB/Saso/GS Certified Factory Supply Directly First Grade 63% Thermal Efficiency Gas Cooker Stove







Gas stove description

1)Pulse ignition, 100% ignition and rapid ignite.

2)successful ignition in the condition of pressure instability.

3)Pulse igniter have high-quality products and competitive price.

4)Igniter have passed the CSA and CE.
CE/CB/Saso/GS Certified Factory Supply Directly First Grade 63% Thermal Efficiency Gas Cooker Stove











Burner and Nozzle Specifications



Burner and nozzle specifications

Liquid gasNatural gas
BurnerThermal power
(kw)
Nozzle
1/100(mm)
Flow
(g/h)
Thermal power
(kw)
Nozzle
1/100(mm)
Flow
(g/h)
Triple ring burner3.2922323.2135326
Rapid burner2.8772032.8121262
Semi rapid burner1.75651271.7590166
Auxiliary burner1507317795
Supply pressures (Nomimal(mabr)28-3020
Maximum(mabr)3525
Minimum(mabr)2015









Gas stove quality control



1)Our products gas water heater have achieved CE approval

2)Every product gas water heater will be tested in the factory line before packed

3)Sample of gas water heater can be offered for you inspection

4)Carton packaging, built-in batten, ensure products in good transportation to your port
CE/CB/Saso/GS Certified Factory Supply Directly First Grade 63% Thermal Efficiency Gas Cooker Stove







Gas stove certificate



Gas water heater have CE certificate,SASO,COC,CCC,CB,can be optional.



CE/CB/Saso/GS Certified Factory Supply Directly First Grade 63% Thermal Efficiency Gas Cooker Stove



Gas stove Packing& Shipping

1.All of Haodi gas hobs packed by 5 layers export standarded cartons.

2.The burner caps all fixed by the stickers.

3.The Pan supporters all fixed into the foam, the foam can stand a human.

4.Sample of gas stove can be prepared in 1 week

5.20'GP/40'HQ goods can able to prepared in 25days



Load Quantity
20GP40GP40HQ
489pcs1014pcs1189pcs



Our service

1.1 year warranty

2.1%-2%Spare Parts

3.OEM & ODM are welcome

4.CkD anfd SKD are available.

5.tried orders are available

6.sample of gas water heater can be supplied in 7days
